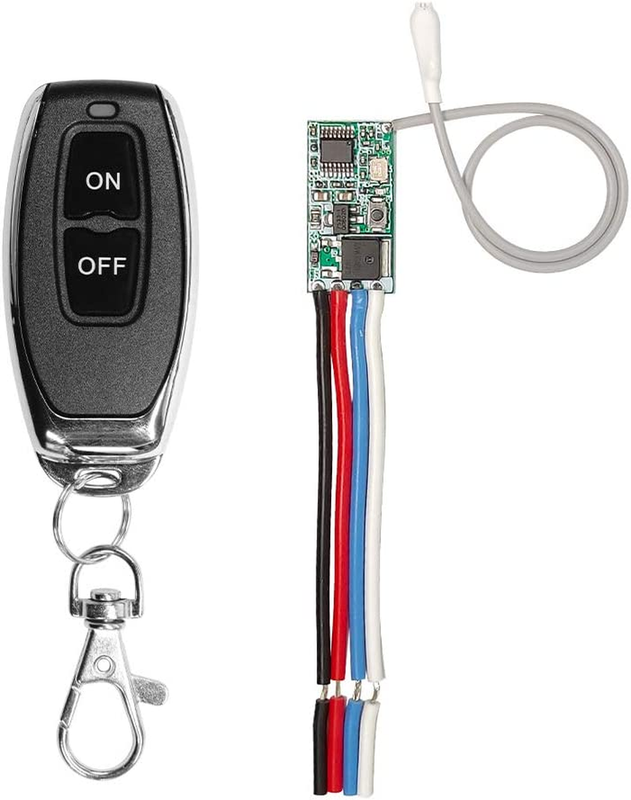

433mhz Universal Wireless Rf Remote

433Mhz Universal Wireless RF Remote Control Switch DC 6V 12V 24V 1CH Relay Kit
🌟 Wireless control LED lamp string, Christmas tree light string, light control switch - EASY and SAFE 🎄
✨ Wireless remote control switch: Easy to use and safe. Working voltage: DC3.6V-DC24V; Maximum load: 2A. Wireless control, easy to learn, relearn, and control. 📱
📡 Long Range: Small and stable with reliable performance. High sensitivity with a signal that can pass through walls, floors, and doors. Range up to 50m in open space. 🚀
🔋 Advantage: Flexible operation with a small size. Stable and reliable performance with high receiving sensitivity and low power consumption. Resistance to interference with non-directional wireless coding technology for independent and interference-free control. Flexible configuration of quantity and operation mode. 💪
🔌 Applications: Wide range of applications, from simple domestic remote control to autonomous control. Ideal for DIY projects, LED lights, lamp beads, Christmas tree light strings, light control switches, and more. 🎉
🔢 4 Work Modes: Momentary Mode, Toggle Mode, Latched Mode, Delay Mode. Tips: If you encounter any problems, please contact us via email for wholehearted service. Thank you very much! 📩
Specification:

Working voltage: DC 3.6V~24V

Maximum load: 2A

Static current: 3.6 mA ~ 5.5mA

Working frequency: 433MHz

Reception sensitivity: ≥ -107dBm

Number of stored remote controls: ≤ 10

Modulation mode: ASK (superheterodyne)

Working modes: Momentary, Toggle, Latching, Delay Mode

About Working Modes:

Momentary Mode: Press the remote button to connect the relay, release the remote button to disconnect the relay.

Toggle Mode: Press once to connect the relay, press twice to disconnect the relay.

Latching Mode: Press button A to connect the relay, press button B to disconnect the relay.

Delay Off Mode: Press the corresponding button to activate the relay for a specific period of time.

Note: The blue output wire is ALWAYS Vcc (input voltage)! The device only switches the ground. Follow the instructions on the product page to reset and select the desired working mode pairing.
Summary: Simplify your lighting control with this wireless LED lamp string and Christmas tree light switch. The wireless remote control allows for easy and safe operation, with a wide working voltage range and high load capacity. Its long-range performance ensures reliable signal transmission even through walls and doors. With flexible operation and low power consumption, it can be used for various applications, from DIY projects to controlling LED lights and more. Choose from 4 different work modes to suit your needs. Clear instructions are provided to guide you through the pairing process. Enjoy the convenience and versatility of wireless control with this LED lamp string and Christmas tree light switch. Maximum Switching Current 2 Amps Item Package Quantity 1 Batteries Required? Yes Finish Black Color 1-SET Product Dimensions 0.89 x 0.43 x 0.31 inches Coil Voltage 12 Volts Battery Cell Type Lithium Manganese Dioxide Item Weight 1.27 ounces Batteries 2 CR2032 batteries required. (included) Batteries Included? Yes Color Name 1-SET Included Components Switch Use Easy To Use Gift Gift for all Offer Limited Time Offer Origin USA Quality Genuine Shipping Free Shipping Condition New Shipping Speed Fast Shipping Customer Service We solve any problem
